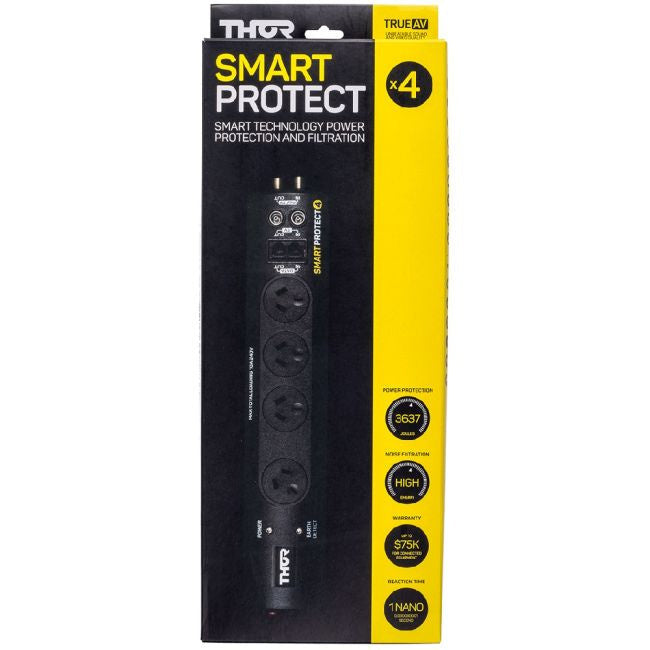

Thor E1/45S – 4 Way Smart Filter Surge Protected Power Board

Technical Smarts

• Product Dimensions: 350mm (L) x 35mm (H) x 70mm (W)
• Supply voltage 240/V AC 50/Hz
• Maximum current rating 10amps/2400W(VA)
• Reaction time less than 1 nanosecond
• Maximum translent spike impulse current 86,000 amps (equivalent to 21,500 amps using UL 1449 standard)
• Maximum energy dissipation 3637 Joules (equivalent to 846 Joules using UL1449 standard)
• Protection modes (all 4 outlets protects on all 3 conductors). Active/Neutral, Active/Earth, Neutral/Earth
• EMI/RFI noise reduction filter type
• Total number of protected AC outlets: 4
• Pay TV'F' type connection: 1 in and 1 out
• AV/TV antenna coax connection: 1 in and 1 out
• RJ 45 data protection: 1 in and 1 out
• Earth potential rise protection
• Earth leakage range less than 1 milli amp
• Operating conditions: Indoor/AC mains
• Operating temperatures: -10C/+60C
• Cable length: 1.2m
• Model No: E1/45S
